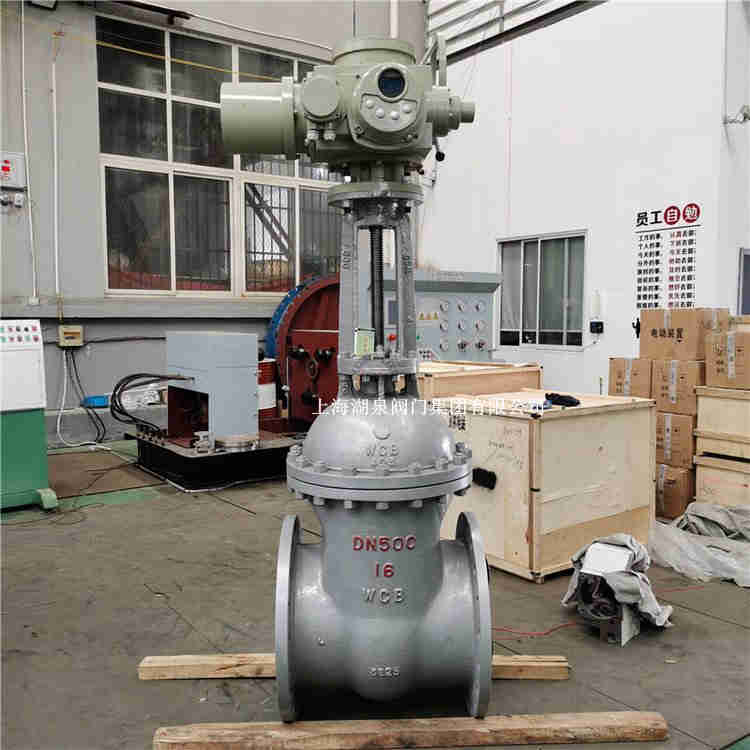

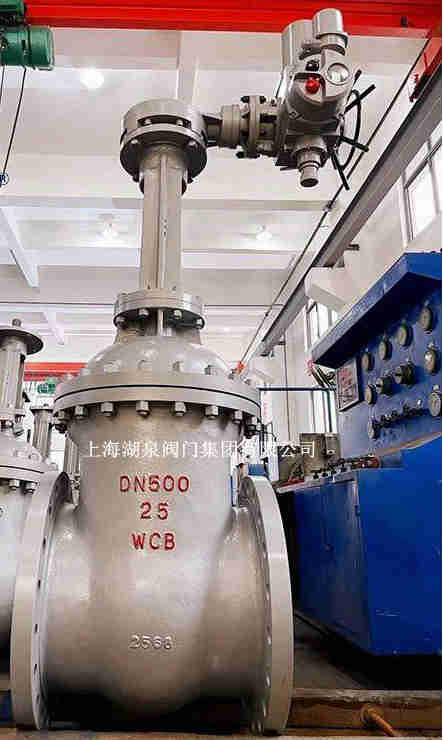

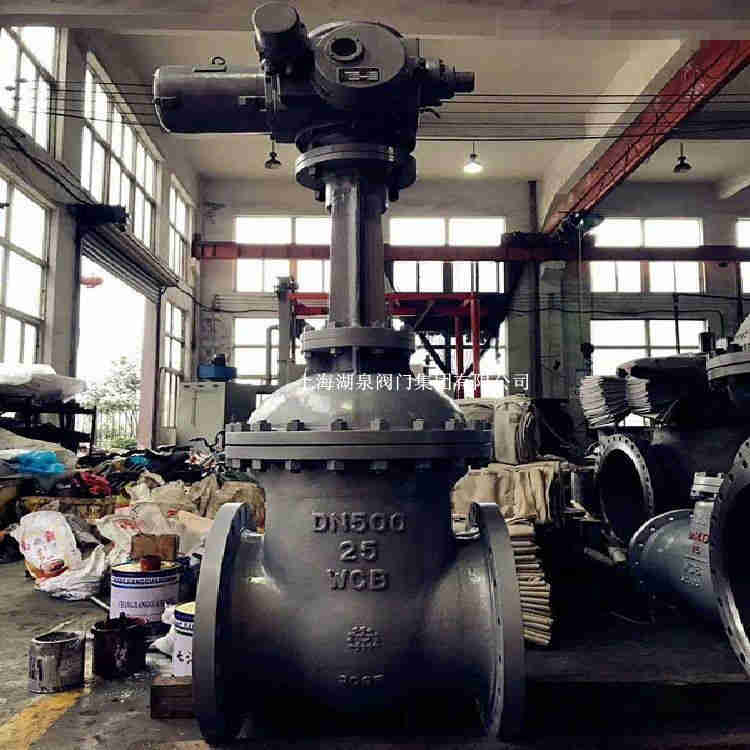

z941H-40c-DN500电动远程控制法兰闸阀

[ 2022-08-05 ]
z941H-40c-DN500电动远程控制法兰闸阀是一种远程智能操作式阀门。该产品常用于给排水及工业系统中的自动控制,控制反应准确快速,根据电信号遥控开启和关闭管道路系统,实现远程操作。可用于大型电动操作系统。它关闭速度可调,平稳关闭而不产生压力波动。该闸阀维修简单、使用方便、安全可靠等优点。电动执行器采用一体化结构设计,具有自诊断功能,使用和调校十分方便。有数字显示,可看到控制信号值、反馈信号值、电动手操值。
z941H-40c-DN500电动远程控制法兰闸阀
湖泉 z941H-40c-DN500电动远程控制法兰闸阀电动执行机构功能优点:带断控制信号故障判断、报警及保护功能。即断信号时可使执行机构或开;或关;或保持;或在0~100%之间予置的任意位置。及带阀门堵转故障判断、报管及保护功能。占据空间体积小,节省安装管道及费用。具有调节精度高、调节性能好的特点,允许温差≤l50℃。除了阅盖处衬套导向外,阀芯侧面与阀座内表面也有导向作用,导向面积大,工作可靠。波纹管密封型对移动的阀杆形成安全的密封,堵绝液体外漏。
 dn500电动闸阀
z941H-40c-DN500电动远程控制法兰闸阀产品参数
口 径:DN15-DN600
压 力:1.6Mpa-6.4Mpa
连接方式:法兰、螺纹、焊接等。
传动方式:手动、正齿轮、锥齿轮、气动、电动等。
阀体材质:WCB、304、316、铜、铬钼钢等
使用介质:非腐蚀或腐蚀的气体液体。
介质温度:-29℃-425℃
电动闸阀dn500
z941H-40c-DN500电动远程控制法兰闸阀产品主要零部件材料
阀体、阀盖 阀板 阀座 阀杆 填料 适用介质 适用温度(≤℃)
WCB WCB+D507MO  D577 2Crl3 柔性石墨 水、油品、蒸汽 425
ZGlCr5MO ZGlCr5M0+ Stellite12 1Crl8Ni9+ Stellite6 25Cr2M01VA 柔性石墨 水、油品、蒸汽 550
ZGlCrl8Ni9Ti Crl了Ni2 1Crl8Ni9+ Stellite6 1Crl8Ni9Ti PTFE 硝酸类、碱类 200
ZG00Crl7Nil4M02 316L+ Stellite12 316L+Stel1ite6 316L PTFE 尿素、甲铵液、磷酸 200

Z941H-40C-DN15,Z941H-40C-DN20,Z941H-40C-DN32,Z941H-40C-DN40,Z941H-40C-DN50,   Z941H-40C-DN65,Z941H-40C-DN80,Z941H-40C-DN100,Z941H-40C-DN125,Z941H-40C-DN150,Z941H-40C-DN200,Z941H-40C-DN250,Z941H-40C-DN300,Z941H-40C-DN350,Z941H-40C-DN400,Z941H-40C-DN450,Z941H-40C-DN500,Z941H-40C-DN600,Z941H-40C-DN700,Z941H-40C-DN800,Z941H-40C-DN900,Z941H-40C-DN1000,Z941H-40C-DN1200,Z941H-40C-DN1400,Z941H-40C-DN1600
Z941H-4.0C-DN15,Z941H-4.0C-DN20,Z941H-4.0C-DN32,Z941H-4.0C-DN40,Z941H-4.0C-DN50,Z941H-4.0C-DN65,Z941H-4.0C-DN80,Z941H-4.0C-DN100,Z941H-4.0C-DN125,Z941H-4.0C-DN150,Z941H-4.0C-DN200,Z941H-4.0C-DN250,Z941H-4.0C-DN300,Z941H-4.0C-DN350,Z941H-4.0C-DN400,Z941H-4.0C-DN450,Z941H-4.0C-DN500,Z941H-4.0C-DN600,Z941H-4.0C-DN700,Z941H-4.0C-DN800,Z941H-4.0C-DN900,Z941H-4.0C-DN1000,Z941H-4.0C-DN1200,Z941H-4.0C-DN1400,Z941H-4.0C-DN1600
Z941H-40P-DN15,Z941H-40P-DN20,Z941H-40P-DN32,Z941H-40P-DN40,Z941H-40P-DN50,   Z941H-40P-DN65,Z941H-40P-DN80,Z941H-40P-DN100,Z941H-40P-DN125,Z941H-40P-DN150,Z941H-40P-DN200,Z941H-40P-DN250,Z941H-40P-DN300,Z941H-40P-DN350,Z941H-40P-DN400,Z941H-40P-DN450,Z941H-40P-DN500,Z941H-40P-DN600,Z941H-40P-DN700,Z941H-40P-DN800,Z941H-40P-DN900,Z941H-40P-DN1000,Z941H-40P-DN1200,Z941H-40P-DN1400,Z941H-40P-DN1600
Z941H-4.0P-DN15,Z941H-4.0P-DN20,Z941H-4.0P-DN32,Z941H-4.0P-DN40,Z941H-4.0P-DN50,Z941H-4.0P-DN65,Z941H-4.0P-DN80,Z941H-4.0P-DN100,Z941H-4.0P-DN125,Z941H-4.0P-DN150,Z941H-4.0P-DN200,Z941H-4.0P-DN250,Z941H-4.0P-DN300,Z941H-4.0P-DN350,Z941H-4.0P-DN400,Z941H-4.0P-DN450,Z941H-4.0P-DN500,Z941H-4.0P-DN600,Z941H-4.0P-DN700,Z941H-4.0P-DN800,Z941H-4.0P-DN900,Z941H-4.0P-DN1000,Z941H-4.0P-DN1200,Z941H-4.0P-DN1400,Z941H-4.0P-DN1600

z941H-40c-DN500电动远程控制法兰闸阀产品主要技术参数
MZ941H-40型矿用电动闸阀
阀门口径DN(mm) 65 80 100 125 150 200 250 300 350 400 450 500
配套电装规格
额定电压660(380)V
ZB15-24 ZB20-24 ZB30-24 ZB45-24 ZB60-24 ZB90-24 ZB120-24

公称压力(MPa) 试验压力(MPa)
壳体 密封(液) 密封(气) 上密封
Z941H-1.6C 2.4 1.76 0.6 1.76
Z941H-2.5C 3.8 2.75 0.6 2.75
Z941H-4.0C 6.0 4.4 0.6 4.4
Z941H-6.4C 9.6 7.04 0.6 7.04
Z941H-10.0C 15.0 11.0 0.6 11.0
Z941H-16.0C 24.0 17.6 0.6 17.6

z941H-40c-DN500电动远程控制法兰闸阀产品主要尺寸
公称通径DN(in) 主要外形尺寸及连接尺寸(mm) 电动装置
L D D1 D2 D6 b z-Φd f f2 H
Z940、Z941、Z942
40 200 145 110 85 76 18 4-Φ18 3 4 617 ZB15
50 250 160 125 100 88 20 4-Φ18 3 4 665 ZB15
65 280 180 145 120 110 22 8-Φ18 3 4 680 ZB15
80 310 195 160 135 121 22 8-Φ18 3 4 752 ZB15
100 350 230 190 160 150 24 8-Φ23 3 4.5 846 ZB20
125 400 270 220 188 176 28 8-Φ25 3 4.5 908 ZB20
150 450 300 250 218 204 30 8-Φ25 3 4.5 1087 ZB40
200 550 375 320 282 260 38 12-Φ30 3 4.5 1243 ZB40
250 650 445 385 345 313 42 12-Φ34 3 4.5 1429 ZC45
300 750 510 450 408 364 46 16-Φ34 4 4.5 168 ZC60
350 850 570 510 465 422 52 16-Φ34 4 5 1738 ZC90
400 950 655 585 535 474 58 16-Φ41 4 5 1897 ZC120
450 1050 680 610 560 524 60 20-Φ41 4 5 2104 ZC180
500 1150 755 670 612 576 62 20-Φ48 4 5 2401 ZC180
